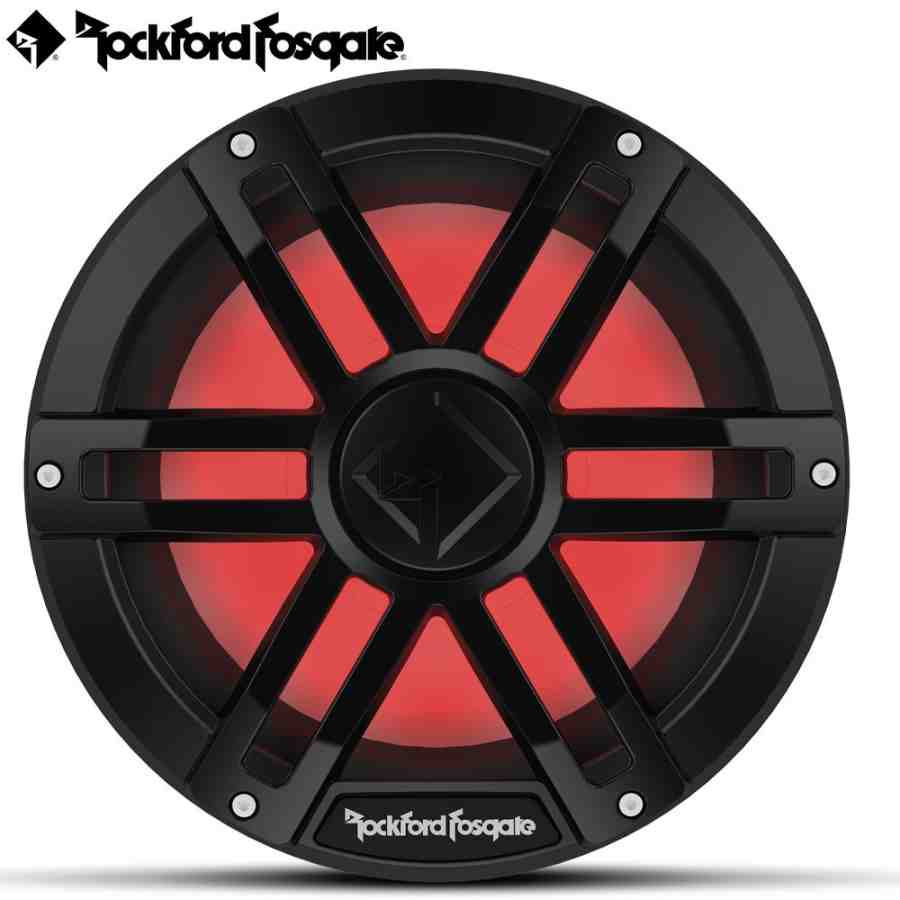

ROCKFORD FOSGATE M1D2B-10 RGB SUBWOOFER (10" - IPX6 - 1200W)

FEATURES AT A GLANCE

• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Optically clear UV stable RGB Lighting Encapsulation
• 2″ (50mm) High Temp Kapton™ Woofer Voice Coil Former
• 100% UV Stable ASA plastic frame & grille design stands up to harsh marine environment
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• Fully insulated silicone tinsel leads
• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
• Co-molded surround and mineral filled polypropylene cone body
• Zinc Nickel-plated Marine grade brass connection terminals
• Linear Synthetic Fiber Blend Spiders
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Santoprene VAST Surround
• Vented motor design with water-repelling nano coated mesh screen
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ / SPECIFICATIONS

• Size 10″
• Voice Coil Type: Dual Voice Coil
• Frequency Response: 20 Hz – 750 Hz
• Nominal Impedance (Ohms): 1-Ohm or 4-Ohm Switchable
• Power Handling (Watts RMS) 300 Watts RMS, 1200 Watts PEAK
• Voice Coil Diameter: 2.0″ (50 mm)
• Magnet Weight (oz): 47.70 oz. (1.35 Kg)
• Fs (Hz): 34
• Re (Ohms): 3.7
• Le (mH): 2.22
• Sd (cm2): 394.1
• Qms: 7.80
• Qes: 0.47
• Qts: 0.44
• Vas: 44.2
