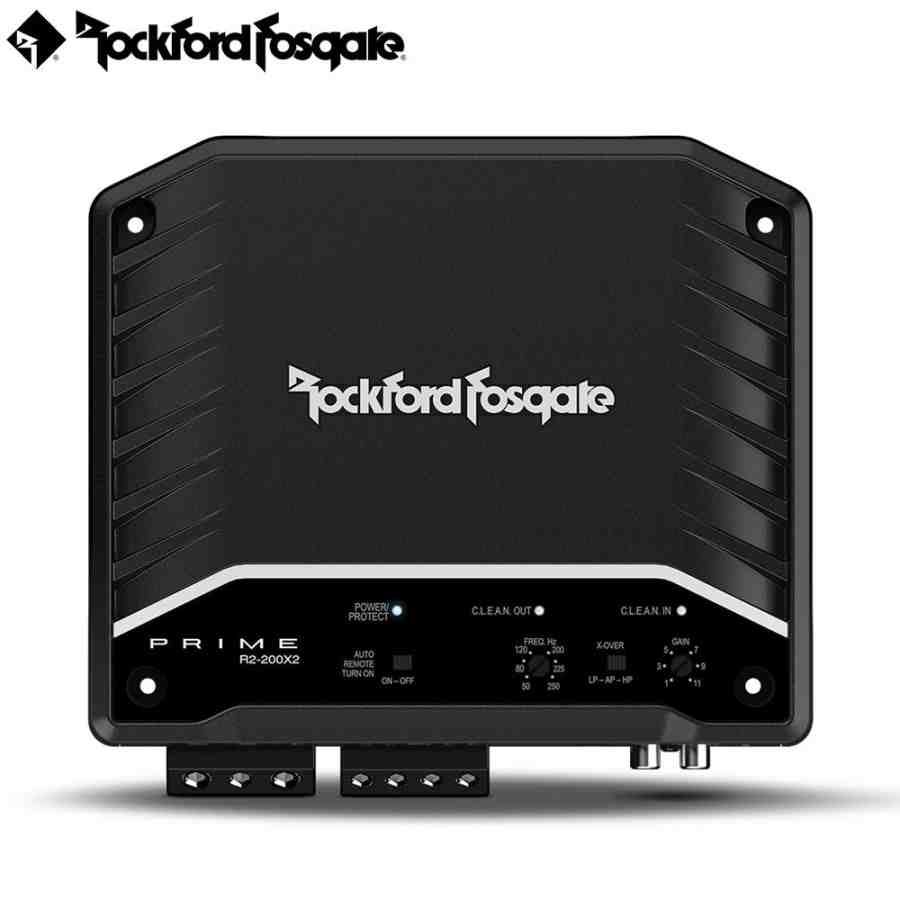

ROCKFORD FOSGATE PRIME R2-200X2 (200W, CLASS D, 2 CHANNEL AMPLIFIER)

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

---

FEATURES AT A GLANCE

• Full Range Class-D
• CEA-2006 Compliant & CE Compliant
• Cast aluminum heat sink
• Features C.L.E.A.N. Set-up
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• High Level Input Capable
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• Variable Input Gain adjustment level
• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• Balanced Differential Inputs with RCA Pass Through Outputs
• 1 Year Warranty

Τεχνικά Χαρακτηριστικά /  Specifications

• Cta-2006 Compliant
• Number of Channels: 2
• Total Power (Sum of Rated Power): 200 Watts
• Rated Power (RMS Continuous Power): 50 Watts x 2 @ 4Ω - 100 Watts x 2 @ 2Ω - 200 Watts x 1 @ 4Ω Bridged/Mono
• Dynamic Power (PVC/PowerCube®): 60 Watts x 2 @ 4Ω - 107 Watts x 2 @ 2Ω - 215 Watts x 1 @ 4Ω Bridged/Mono
• Bridgeable: Yes
• Frequency Response: 20 Hz - 20 kHz
• Input Sensitivity: Low-Level: 150 mV - 4 V, High-Level: 450 mV - 12 V
• Circuit Topology Class: Class-D
• Total Harmonic Distortion (THD+Noise): 4Ω: <1.0% - 2Ω: <1.0%
• Signal Input: Low-Level: 2 RCA, High-Level: 4-Pin Molex
• Signal Output: Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls: No
• Crossover Controls: High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth - Low-Pass:50 Hz - 250 Hz @ 12dB/Octave Butterworth, All-Pass: Yes
• Remote Controls: No
• Visual Indicators: POWER (Blue) / PROTECT (Red), C.L.E.A.N. IN (Red), C.L.E.A.N. OUT (Blue/Red)
• Power Wire Gauge: 4 AWG
• Power Input Connector: Compression Terminal Block
• Speaker Wire Gauge: 8 AWG
• Speaker Output Connector: Compression Terminal Block
• Cooling: Convection
• Heatsink
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse (not included): 30 A
• Max. Current Draw (13.8V Sinewave): 18 A
• Dimensions (H x W x D): 1.9" x 6.8" x 8.1" (4.9 cm x 17.3 cm x 20.5 cm)

---
