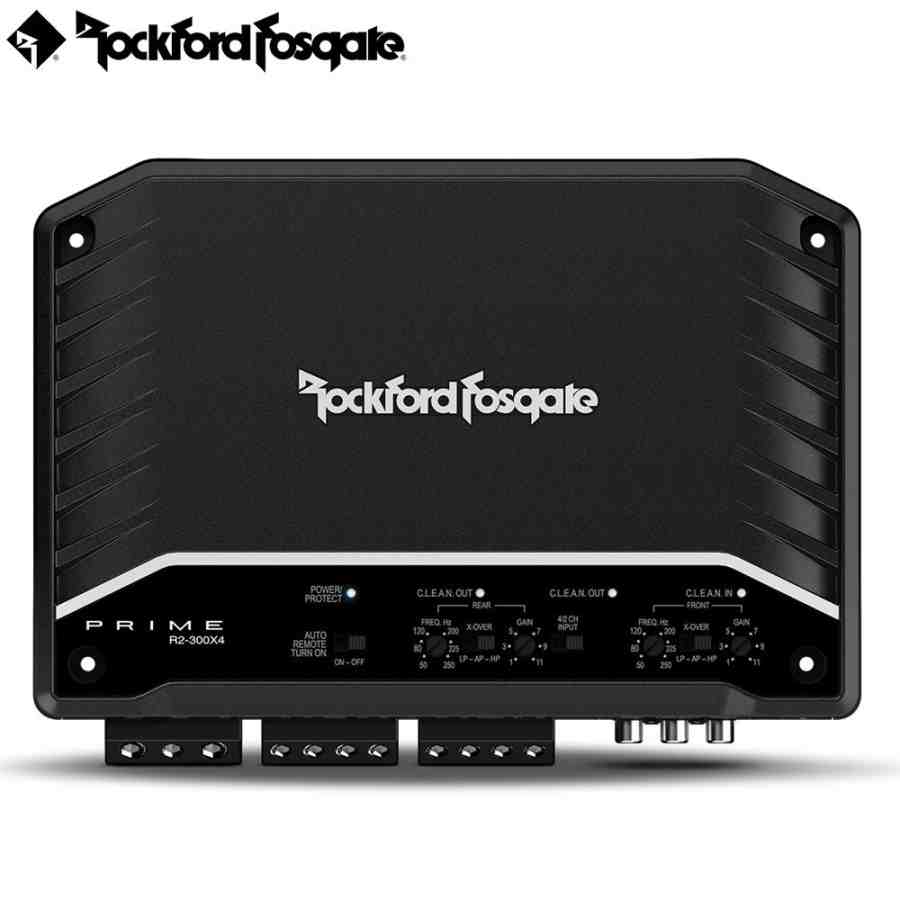

ROCKFORD FOSGATE PRIME R2-300X4 (300W, CLASS D, 4 CHANNEL AMPLIFIER)

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

---

FEATURES AT A GLANCE

• Full Range Class-D
• CEA-2006 Compliant & CE Compliant
• Cast aluminum heat sink
• Features C.L.E.A.N. Set-up
• Balanced Differential Inputs with RCA Pass Through Outputs
• Front and Rear Variable Input Gain adjustment level
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• Top Mounted Control Panel
• Short Circuit & Over Current Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• 2/4 Channel Input Selection Switch
• High Level Input Capable
• 1 Year Warranty

Τεχνικά Χαρακτηριστικά /  Specifications

• Cta-2006 Compliant
• Number of Channels: 4
• Total Power (Sum of Rated Power): 300 Watts
• Rated Power (RMS Continuous Power): 50 Watts x 4 @ 4Ω - 75 Watts x 4 @ 2Ω - 150 Watts x 2 @ 4Ω Bridged/Mono
• Dynamic Power (PVC/PowerCube®): 70 Watts x 4 @ 4Ω - 115 Watts x 4 @ 2Ω - 230 Watts x 2 @ 4Ω Bridged/Mono
• Bridgeable: Yes
• Frequency Response: 20 Hz - 20 kHz
• Input Sensitivity: Low-Level: 150 mV - 4 V, High-Level: 450 mV - 12 V
• Circuit Topology Class: Class-D
• Total Harmonic Distortion (THD+Noise): 4Ω: <1.0%,  2Ω: <1.0%
• Signal Input: Front Low-Level: 4 RCA, Front High-Level: 4-Pin Molex, Rear Low-Level: 4 RCA, Rear High-Level: 4-Pin Molex, Input Switch: 2/4 Input (works for RCA/hi-level inputs)
• Signal Output: Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
• Tone Controls: No
• Crossover Controls: Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth, Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth, Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth, Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth, All-Pass: Yes
• Remote Controls: No
• Visual Indicators: POWER (Blue) / PROTECT (Red), C.L.E.A.N. IN (Red), C.L.E.A.N. OUT Front (Blue/Red), C.L.E.A.N. OUT Rear (Blue/Red)
• Power Wire Gauge: 4 AWG
• Power Input Connector: Compression Terminal Block
• Speaker Wire Gauge: 8 AWG
• Speaker Output Connector: Compression Terminal Block
• Cooling: Convection
• Heatsink
• Operating Voltage: 9 - 16 VDC
• Recommended Fuse (not included): 60 A
• Max. Current Draw (13.8V Sinewave): 39 A
• Suggested Alternator
• Dimensions (H x W x D): 1.9" x 6.8" x 10.1" (4.9 cm x 17.3 cm x 25.5 cm)

---
