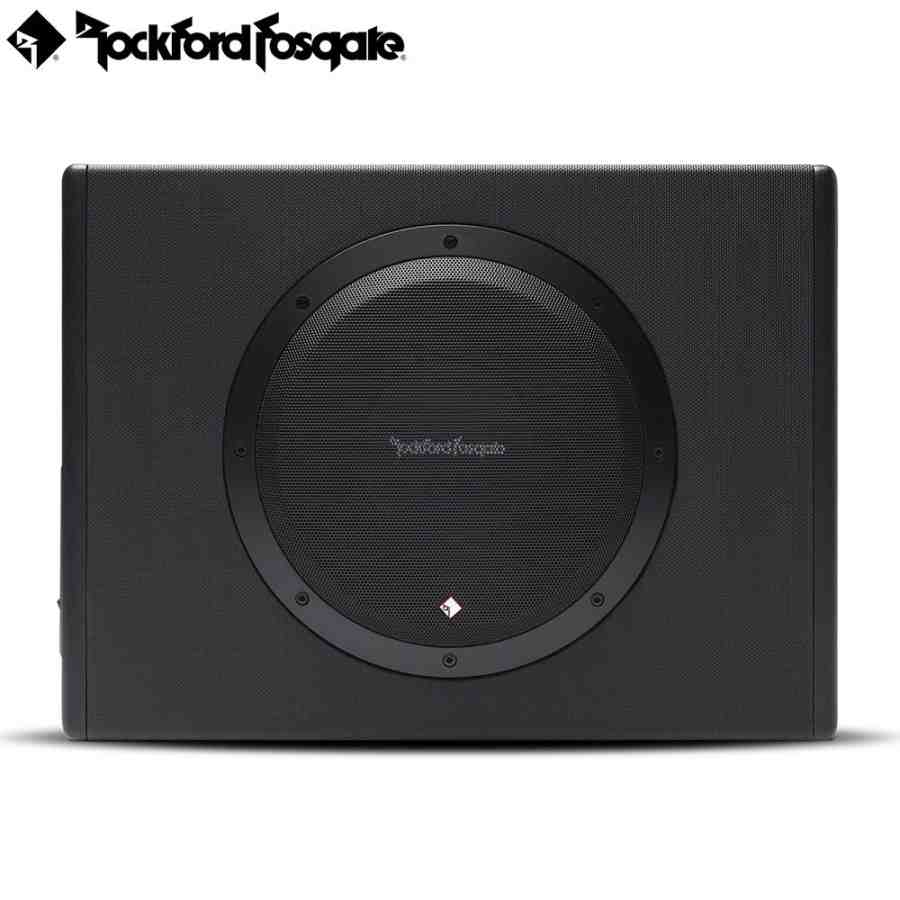

ROCKFORD FOSGATE PUNCH P300-10 (10"- 300W AMPL)

If you need to quickly add bass to a system or want to alleviate the hassle of separate amplifiers and subwoofers, then the P300-10 is the right one for the job! The P300-10 features a Punch 10” subwoofer in a custom sealed enclosure and is powered by a mighty 300 Watt amplifier. The system is all-inclusive, so you only need to run power, ground and a signal from the source to get this baby moving. Features a durable exterior that resists scrapes and bumps while in the trunk or cargo area.

---

FEATURES AT A GLANCE

• Constructed with 5/8" MDF
• Detachable Power/Ground connector
• Proprietary high output woofer
• Large AWG input terminals
• Remote bass level control included
• High-efficiency, low current design
• Thermal and over/under voltage protection
• Intelligent auto turn on/off function
• Adjustable 12db/Octave low pass crossover
• Built-in adjustable bass boost EQ
• Separate low level and speaker level inputs
• Built-in 0°/180° phase switch
• "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
• Covered with industrial heat activated vinyl
• 1 Year Warranty

Τεχνικά Χαρακτηριστικά /  Specifications

• CEA-2006 Compliant
• Woofer Size: 10"
• Woofer Quantity: 1
• Woofer Series: Proprietary
• Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
• Remote Control: Included
• Nominal Impedance (ea): —
• Power Handling (Watts RMS): 300 Watts RMS
• Enclosure Type: Amplified
• Shipping Weight: 23.8 Lbs. (10.79 kg)
• Speaker Connector: n/a
• Dimensions: Box (H x W x D) 13.3 x 18 x D1 8.9 - D2 5.9 (in), Wedge (H x W x D1 x D2) 33.7 x 45.72 x D1 22.6 - D2 14.98 (cm)
• Tone Controls: Gain & Bass Boost
• Signal Input: Low-Level: 1 RCA Pair, High-Level: Left/Right Summed Inputs
• Power Input Connector: Quick Disconnect, Replacement Part: 1130-59232-01
• Cooling: Convection
• Visual Indicators: Power, Protect
• Frequency Response: 35 Hz to 200 Hz
• Integrated Amplifier: 300 Watts RMS
• Crossover Controls: Variable 35Hz to 150Hz, 12dB/Octave Butterworth
• Power Wire Gauge: 8 AWG
• Heat Sink Type: Extruded Aluminum
• Circuit Topology Class Class-D
